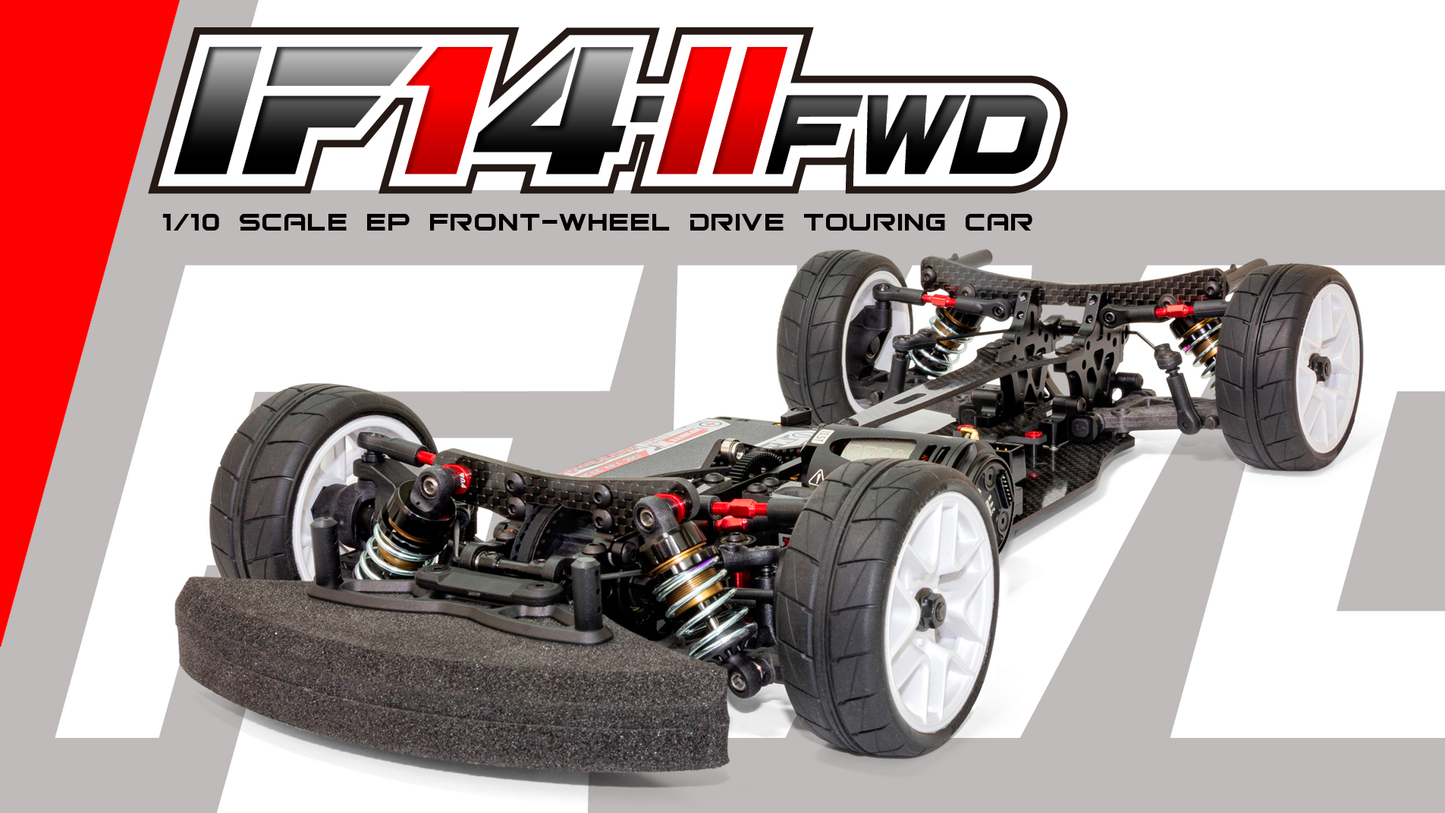

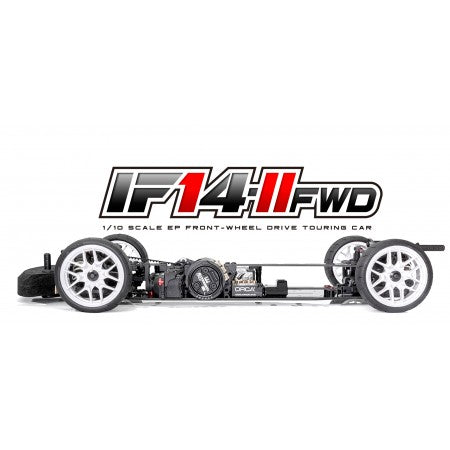

IF14-II FWD 1/10 SCALE EP FWD TOURING CAR CHASSIS KIT

CM-00010 - IF14-II FWD 1/10 SCALE EP FWD TOURING CAR CHASSIS KIT

Newly designed 1/10 scale electric FWD touring car based on the IF14-2, which has proven its high potential in many races.
The ideal front-rear weight balance for a FWD touring car has been achieved. The result is a model that balances cornering speed and traction at a high level, and gives you easy and fun driving that is typical of FWD touring cars.

Newly Designed Servo Mount Integrated Motor Mount
To achieve the ideal front/rear weight balance, the servo and motor had to be designed with a compact laid out. This was achieved with a motor mount with integrated servo mount machined from highly rigid A7075 material, one of the key components of the IF14-2FWD. In addition, a graphite motor mount support plate is installed to increase pitching rigidity, resulting in a very rigid motor mount system.

Newly Designed Adjustable Rear Chassis Stiffener
One of the most unique parts of the IF14-2FWD, is the full length graphite rear chassis stiffener. Extending from the center of the chassis to the rear of the rear bulkhead it allows you to adjust the rear pitching stiffness and chassis flex characteristics infinitely and quickly.

Newly designed integrated rear bulkhead
With a FWD chassis there is no need for a rear differential, so the IF14-2FWD features a rear bulkhead specifically designed for the FWD platform. This results in fewer parts for easier maintenance.

Newly designed steering system
The IF14-2FWD has a newly developed compact steering system that drastically reduces the space occupied by the steering system. This allows the servo, motor, and battery to be placed as close to the front axle as possible, achieving an ideal front-rear weight balance.

Newly designed steering system
The IF14-2FWD has a newly developed compact steering system that drastically reduces the space occupied by the steering system. This allows the servo, motor, and battery to be placed as close to the front axle as possible, achieving an ideal front-rear weight balance.

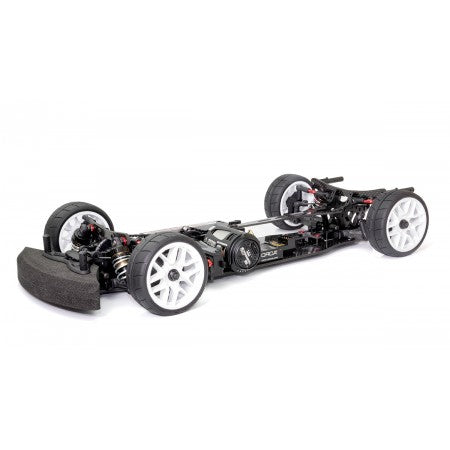

Newly designed balancing bumper weight (85g)
A special 85g balancing weight is mounted inside the front bumper.
When the foam bumper is installed, it is completely hidden and does not spoil the cool look of the chassis.

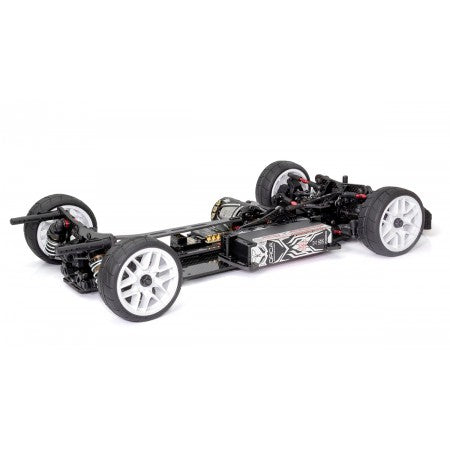

The chassis layout features the battery on the left side of the chassis with the electronics on the right side which together with the bumper weight provides an ideal front-to-back and side-to-side weight balance.

New Graphite Separate Top Deck and Main Chassis
The IF14-2FWD requires a well-balanced main chassis and top deck to achieve the ideal chassis flex and pitching stiffness for a FWD touring car and the IF14-2FWD features a separate top deck for the front and rear to help achieve this ideal chassis flex and balance.

Compatible with both shorty and standard straight batteries
The IF14-2FWD is compatible with both standard straight batteries as well as shorty batteries with excellent weight balance. You can enjoy with which ever battery suits your situation. Only for use with 7.4VLi-Po battery with a hard case.
